PRODUCT CHARACTERISTICS


The hose reel combo cabinet is designed to protect the hose reel from damage of the external environment.

Combine kinds of hose reel to meet different requirements, much more convenient to operate. Pressure cleaning, foam cleaning, blow dust or any electricity usage are all available by this combo cabinet.

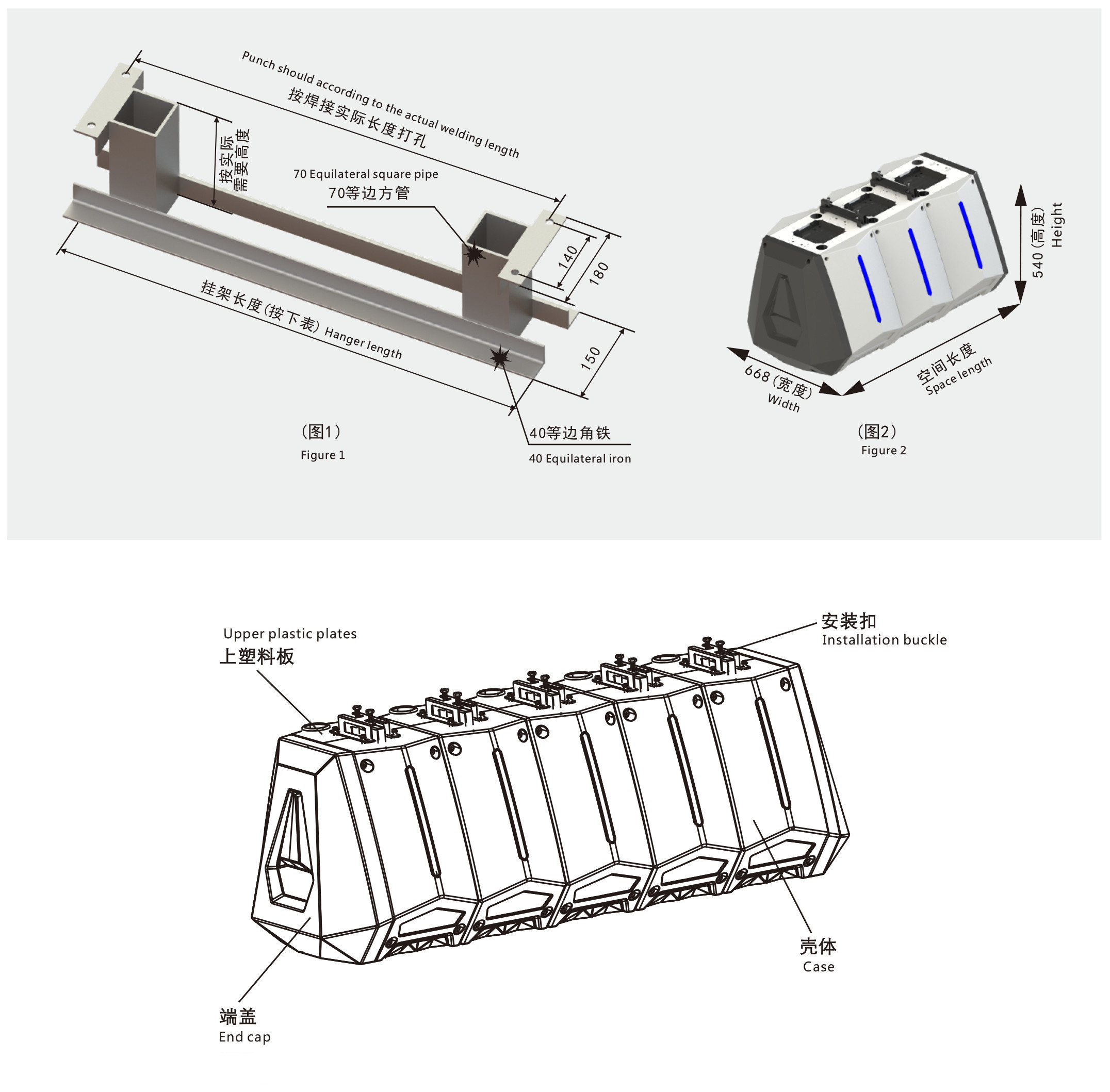

INSTALLATION DIAGRAM


Manufacturing standard of angle iron bracket（Figure1）mm

Way
2way
3way
4way
5way
6way
7way
8way
Hanger Length
600
900
1200
1500
1800
2100
2400



Installation space（Figure2）mm

Way
2way
3way
4way
5way
6way
7way
8way
Space Length
845
1145
1445
1745
2045
2345
2645
l Car wash
l Car service
l Husbandry factory
l Workshop
l Industrial areas
l Garages
